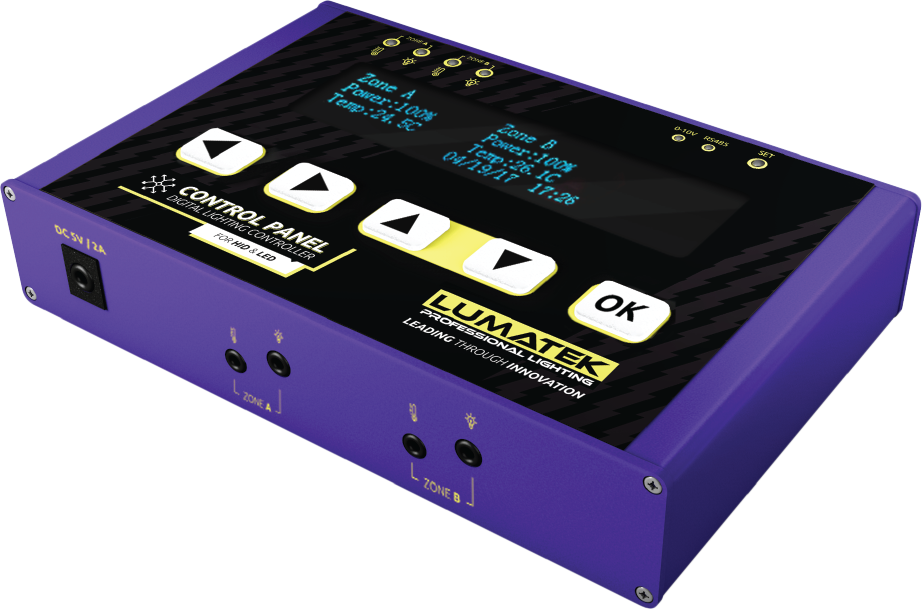

LUMATEK LED CONTROL PANEL PLUS DUAL SIGNAL HID & LED

The LUMATEK Control Panel PLUS (HID+LED)plus is a dual signal digital lighting controller that offers precise external control of your Lumatek lighting fixtures, drivers and ballasts. Using innovative technology, this controller smartly monitors your grow room temperatures, light timing & intensity automation, safety-controlled dimming and switching On/Off. Simply connect it to your Lumatek Controllable Fixtures, Drivers or Ballasts and easily regulate your grow room environment.

The Lumatek Control Panel Plus is a dual signal twin channel digital lighting controller with each of the two channels (Zones) capable of controlling up to 200 Lumatek controllable HID fixtures or ballasts with a digital RS485 signal or up to 50 LED drivers with analog 0-10V signal. It is possible to use each Zone to control fixtures in two independent separate rooms or to control up to 400 fixtures in one room with two different light source types.

Each Channel (Zone) can control same-powered ballasts/drivers; Zone A can control the same-powered ballasts/drivers as Zone B or Zone B can be set to control different powered ballasts/drivers eg: Zone A can be set to control 600W LED fixtures and Zone B set to control 600W or 315W HID ballasts.

• Connectable with Lumatek Controllable HID ballasts & fixtures; 315W, 600W, 630W & 1000W
• Connectable with Lumatek Controllable LED drivers & fixtures; 90W, 465W, 600W & 1000W.
• Dual signal RS485 digital for HID and 0-10V analog protocol for LED.
• Automate switching, timing, dimming and simulate sunrise and sunset periods.
• Temperature-control dimming & switching for safety control
• Automate light intensity and PPFD
• Product Code: LUMM0002

  Power: Adaptor 100 - 240V AC 50/60Hz – DC 5V/2A
  Match HID Ballast: 315W, 600W, 630W, 1000W
  Match LED Driver: 90W, 465W, 600W, 1000W
  Power Dimming Range: 10% - 115%
  Power Regulation Accuracy: 1%
  Temperature-controlled Safety Dimming range: 0ºC-40ºC
  Temperature-controlled Safety Switching range: 10ºC-50ºC
  Sunrise and Sunset Duration: 0-30 min
  Dimensions: 1128 x 80 x 25 mm

  Control panel for up to 400 HID ballasts or 100 LED drivers
  Two channels (Zone A & Zone B)
  Max number of ballasts/drivers per Zone: 200 (RS485) HID or 50 (0-10V) LED
  Total number of ballast/drivers per controller: 400 (RS485) HID or 100 (0-10V) LED
  24 Hr Light timing & switching
  Temperature sensor monitoring and control
  Dimming control (1% increments)
  Safety and temperature control automation
  Simulate sunrise and sunset to lessen plant stress
  Light intensity automation

  Items included:
  1 x Lumatek Control Panel Plus
  1 x Power adaptor and cable
  2 x Temperature sensor 5m cable

..
