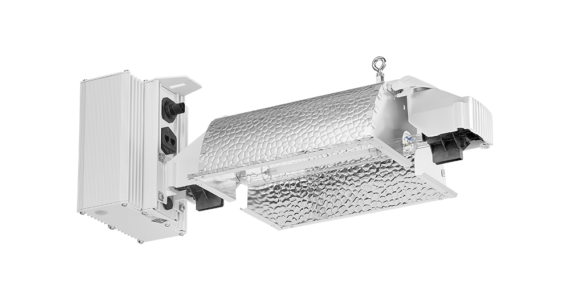

The fixture comprises of a ballast, reflector and lamp in one complete compact package. Made according to horticultural standards, the housing of the ballast is sealed and contains a gore-tex® plug to ventilate the housing, while keeping dust and humidity out.
Ballast output is either controlled by the Gavita Master controllers, or an external switch, allowing it to be adjusted to 600, 750, 825, 1000 W, and 1150W boosted output. The Master Controller can centrally control the output hundreds of fixtures in a range between 500 and 1150W output power. Using the Master controller safeguards your valuable crop by the added auto-dim and auto-shutdown features, and completely automates your light control.
The compact complete fixture contains a lamp, HR96 reflector and horticultural quality ballast in one comprehensive package. The higher output and added efficiency of the industry standard HR96 reflector make this the workhorse of the family.
The ‘e’ in ‘e-series’ stands for external control. These fixtures can be controlled centrally by a Gavita Master controller. This replaces the often cumbersome installation with contactors and clocks, and adds safety features such as automatic dimming of your lights at high temperatures and even a safety shutdown. We improved the electronics and changed the way the ballast is built, by mounting the PCB and warm components directly on the heat sinks instead of in a ballast bracket. The much cooler electronics result in a greater reliability and a longer life. The new design of the housing even increases that effect.
The high voltage lamp technology results in a better efficiency of the arc tube: more light for the same power (10-25% more than traditional single ended lamps)! These lamps are best suited for extreme high frequency electronic ballasts, creating a stable arc without acoustic resonance, assuring optimal output and a long lamp life. The smaller arc tube and outer balloon require the lamp to be nitrogen filled instead of vacuum, which prohibits it to be air cooled. Air cooling of the lamp results in lower lamp temperature, which results in sub-optimal light output, up to 15% less than specified. Therefore these lamps are not suitable for direct air cooled fixtures.
The reflector is replaceable (we recommend to do this every year to two years) and there is a choice of replacement reflectors
